Conventions Used Throughout


The 'Right Hand Rule' convention is used throughout:-
Take your right hand, make a fist, point your thumb in the positive direction of an axis, the direction of your fingers gives you the positive direction of rotation around that axis

Tool Offsets are the distance between the tool tip and the pivot point of the corresponding rotary axis


5Axis Mill with
A rotary table sits vertically on the mill table
The Spindle pivots on the B-Axis which is attatched to the Z-Axis

5Axis Mill

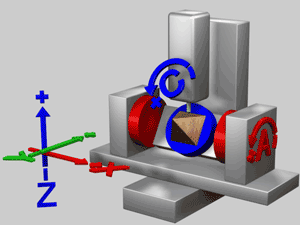

The workpiece rotates on the C-Axis which rotates on the A-Axis

5Axis Gantry Router
The Spindle is attatched via the B-Axis to the C-Axis to the Z-Axis


5Axis Vertical Router
The workpiece sits on a rotating platten.
